Facts

North Korean/U.S. Designation Musudan/Hwasong-10
Missile Variants Mirim/NoDong B
Mobility and Role Road Mobile/Surface to surface Intermediate Range Ballistic Missile
Designer/Producer North Korea
Range 2,500-4,000km
Warhead Type and Weight Conventional or Nuclear/500-1,200kg
MIRV and Yield No MIRV capability / N/A
Guidance System/Accuracy Inertial/1,600m CEP
Stages/Propellant Multistage/Liquid
IOC 2016* Tested; believed to be operational
Status/Number of Units N/A /16 launchers

Development

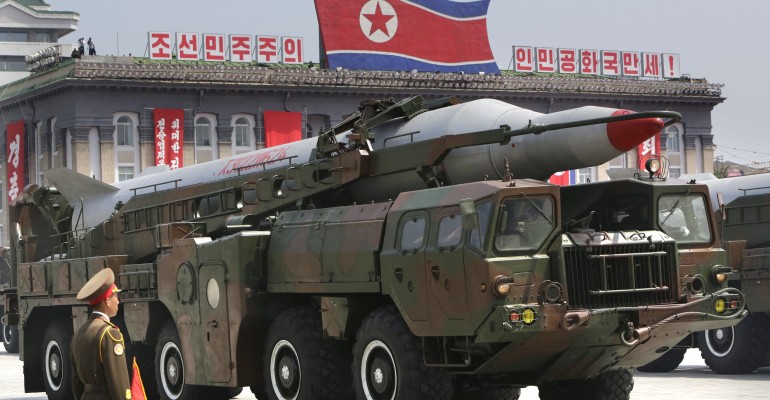

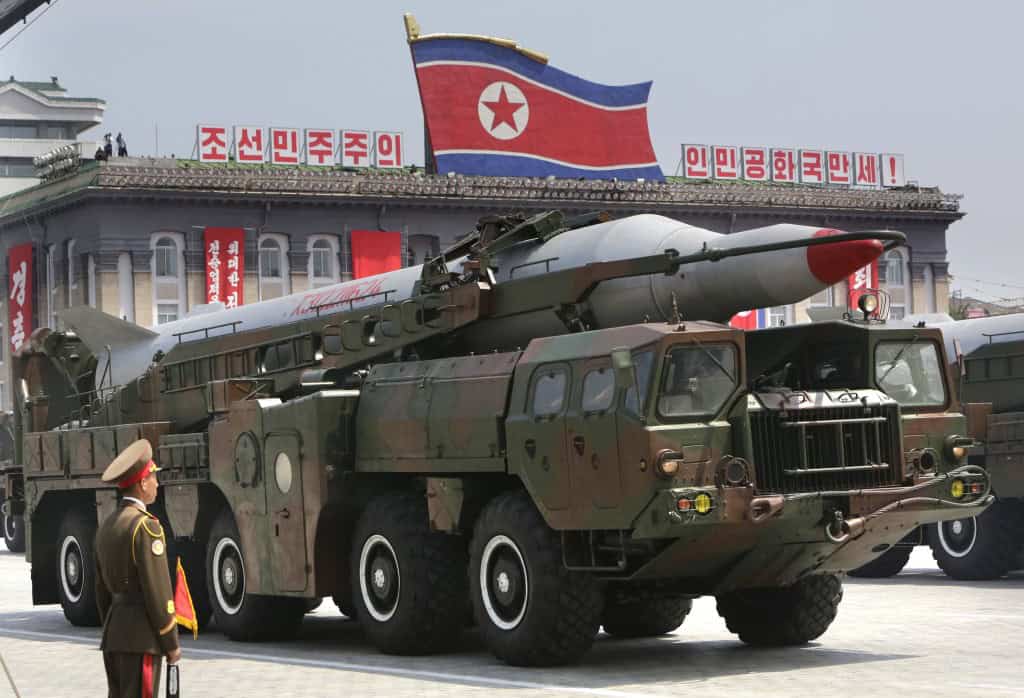

The Musudan is a North Korean road-mobile Intermediate-Range Ballistic Missile (IRBM) that began development in the early 1990s, deriving its design from the Russian R-27/SS-N-6 submarine-launched ballistic missile. [1][2] The one- to two-stage North Korean IRBM uses liquid propellant, has a payload capacity of around 1,200 kg, uses inertial guidance, and—although it has not undergone a successful flight test—has a speculated range of between 2,500 and 4,000 km. [3] In 2009, reports state that the Musudan was used as the second stage for the Unha-2 space launch vehicle (SLV) during an attempt to put a satellite into orbit, and, although the Unha failed to reach orbit, the second stage fired successfully. [5] North Korea attempted to test launch the Musudan on April 15, 2016, but the missile underwent catastrophic failure and exploded on the Launchpad. [4] A prototype of the Musudan was established in 2000, with deployment of the missile likely occurring sometime after the year 2003. [6]

Strategic Implications

The Musudan’s range means that it can strike targets anywhere in South Korea and Japan. The Musudan also has the range to hit the U.S. territory of Guam, which is around 3,500 km away. For that reason, the United States placed a THAAD battery at Guam in 2013 to protect U.S. civilians and military personnel stationed there.

It is speculated that the first two stages of North Korea’s newly unveiled ICBM, the KN-08, are designed from the rocket engines of the Musudan. While neither missile has been flight-tested, with the same engine design, a future successful test of one would validate the capability of the other.

Missile Tests

Click here to see a list of the Musudan tests.

Sources:

[1] http://missilethreat.com/missiles/musudan-bm-25/

[2] http://www.nti.org/analysis/articles/north-korea-missile-capabilities/

[3] http://missilethreat.com/missiles/musudan-bm-25/

[4] https://www.washingtonpost.com/world/asia_pacific/north-koreas-missile-has-failed-officials-from-south-say/2016/04/14/8eb2ce53-bc38-40d0-9013-5655bed26764_story.htm

[5] http://www.nti.org/analysis/articles/north-korea-missile-capabilities/

[6] Ibid.
