June 20, 2018

Quick Facts

PRC/NATO Designation HQ-7 / FM-80 (CSA-4)

HQ-7A / FM-90 (CSA-5)

HQ-7B (CSA-7)

HHQ-7 (naval variant)

Mobility and Role Ground-based/road-mobile; short-range and point air defense
Range 0.7 – 12 km (HQ-7), 0.7 – 15 km (HQ-7B)


J-Band acquisition radar, detect and track targets at range of 17 km


S-Band AESA radar, detect and track at range of 20 km

Targets Low-flying aircraft, cruise missiles, air-to-ground missiles, and anti-radiation missiles
Status/Exports Operational; Exported to Algeria, Bangladesh, Iran, Pakistan, and Turkmenistan
Designer/Producer China Aerospace Science and Industry Corporation (CASIC)

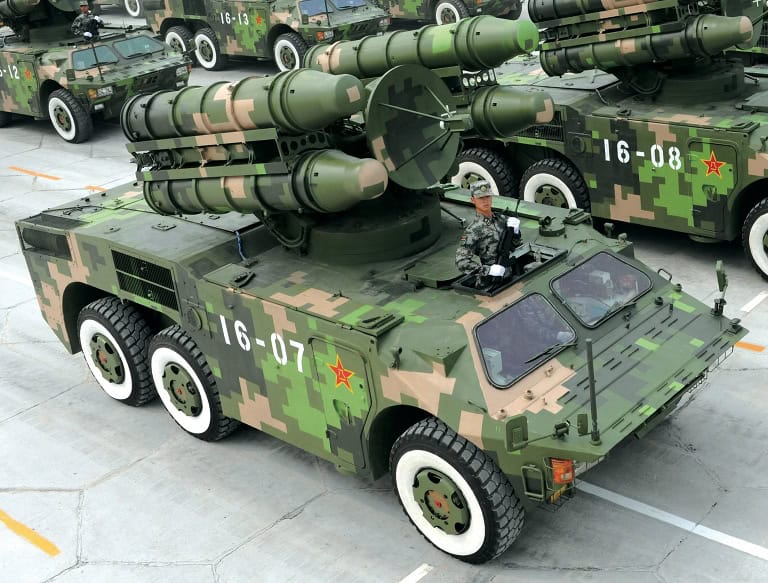

The Hong Qi-7 (HQ-7) is a reverse-engineered copy of the French Crotale missile defense system, one of the most successful air defense systems ever developed. Crotale derivatives comprise three hundred systems deployed in fifteen nations.[i]The HQ-7 is designed for rapid deployment in multiple theatres.[ii]The PLA estimates its single-shot kill probability as 80 percent.[iii]The primary differences between the HQ-7B and earlier HQ-7 systems are upgrades to the acquisition radar and the P4R vehicle:[iv]The original HQ-7’s j-band acquisition radar can detect up to 30 targets and track 12 of them at a range of 17 km.[v]By contrast, the HQ-7B features s-band active electronically scanned array (AESA) radar, which can detect up to 48 targets and track 24 of them at a range of 20 km.[vi]A normal battery includes one vehicle with acquisition radar and three TELAR vehicles, which are equipped with four missiles each.[vii]The Naval variant FM-90 (N) is proposed for export and can be mounted on frigates and destroyers. Each launcher has an eight-missile carrying capacity that can be used t intercept sea-skimming anti-ship missiles.[viii]

Strategic Implications

The design philosophy for the French Crotale—off of which the HQ-7 is based—is to fill the role of a short-range, low-altitude, concealed interceptor with a fast reaction time. The development of hypersonic Soviet aircraft with short radar display times spurred French development of the Crotale, which has a reaction time of less than ten seconds and a reload time of two minutes.[ix]Though the original HQ-7 system is outdated, today Beijing uses the HQ-7B as a short-range level of point defense against low-flying aircraft and tactical ballistic missiles, primarily for coastal and border defense of industrial and military assets. Moreover, HQ-7Bs exported to Iran and Pakistan could prove problematic for older generations of U.S. aircraft or short-ranged artillery in the event of a conflict.


November 2016: Turkmenistan reveals it possesses Chinese FM-90 batteries in a military parade.

May 2015: Pakistan imports at least two HQ-7B batteries from China.[x]

2009: The PLA begins widescale deployment of the armored HQ-7B.[xi]
1999: Iran unveils the Shahab Thaqeb, a clone of the Chinese HQ-7A jointly developed with CASIC.[xii]

1998: CASIC unveils the upgraded HQ-7A, featuring improved radar and range, as well as the FM-90 export version.[xiii]

1989: China unveils an export version of the HQ-7, the FM-80, at the Dubai Aerospace Show.

1986: CASIC certifies mass production of the HQ-7.[xiv]

1983: CASIC completes testing of a Crotale clone, the HQ-7.[xv]

1979: The PLA imports four Thomson-CSF Crotale systems from France and begins the process of reverse-engineering.

1978: Thomson-Houston begins mass production of the Crotale, manufacturing 300 systems.

1967: Thomson-Houston and Rockwell International in France begin conceptual development of the Crotale for South Africa.[xvi]
