HQ-16

HQ-16

June 20, 2018

Quick Facts

PRC/NATO Designation	HQ-16 (SA-11 Gadfly and SA-17 Grizzly)
Variants	HQ-16A HQ-16B HQ-16C HHQ-16 (naval variant)
Mobility and Role	Ground-based/road-mobile; medium-range air and missile defense
Interceptors and Range	40 km (HQ-16), 70 km (HQ-16B and HQ-16C)
Sensors	L-Band passive phased-array radar; range of 85 km S-Band 3-D passive phased-array radar; range of 140 km Semi-active homing seeker
Targets	Cruise missiles, low-flying aircraft, short- and medium-range ballistic missiles
Status/Exports	Operational; Exported to Pakistan
Designer/Producer	Almaz-Antey Concern / PLA

Overview

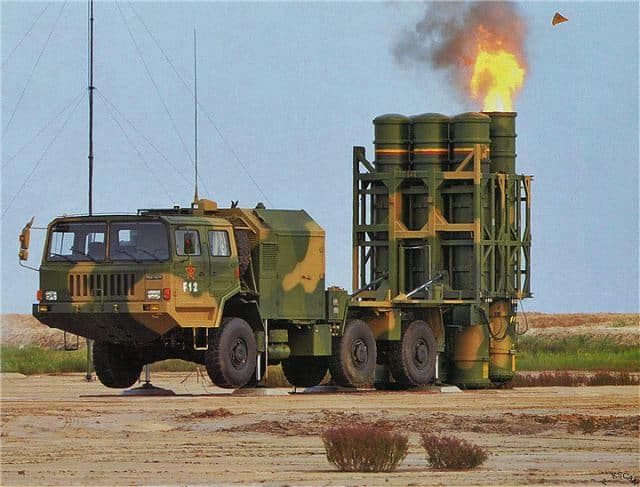

The Hong Qi-16 is a vertical-launch Chinese missile defense system, which most scholars consider to be a reverse-engineered copy of the Russian Buk-M2 aerial defense system. Originally designed to protect Chinese surface ships, the HQ-16 is widely used in China to provide a mid-tier layer of defense against aircraft, UAVs, cruise missiles, and short and medium-range missiles. As opposed to the Russian Buk system, HQ-16 launchers are mounted on Taian TA5350 6×6 high-mobility trucks (compared to Buk tracked chassis), and the radar unit is carried separately on another vehicle.[i]A typical battery comprises of four launch vehicles (with six launch tubes each), a command-and-control unit, two radar units, and a generator.[ii]Further development of the HQ-16 produced the HQ-16B and the nascent HQ-16C, which can reach extended ranges of approximately 70 km thanks to an improved rocket motor and revised wings.[iii]The two radar units in an HQ-16 battery typically consist of one L-band passive phased-array radar (with a range of 85 km) and one S-band 3-D passive phased-array radar (with a range of 140 km), which provides target tracking information.[iv]Together these radar units can detect up to 144 targets and track up to 48simultaneously.[v]HQ-16 interceptors feature semi-active homing and have a reported single-shot kill probability (Pk) of 85 percent against aircraft and 60 percent against cruise missiles.[vi]

Strategic Implications

For China’s layered air defense, the HQ-16 fills the critical gap between the short-range HQ-7 (15 km) and the long-range HQ-9 (200 km).[vii]Since its initial operational capacity in 2011, the HQ-16 has been widely used to protect military installations and industrial assets, particularly in the Shenyang Military Region in northern China.[viii]With a flight speed exceeding Mach 3, HQ-16 missiles can reliably intercept a variety of aircraft, including most fourth-generation fighters. Moreover, because HQ-16 uses a cold launch system, each unit is relatively inexpensive to produce and operate compared to similar Buk systems. Despite the widespread possession of Buk systems, relatively little is known about the Chinese HQ-16 variants, particularly the HQ-16C, because of their limited public testing records.

Timeline

2018:Initial operational capability of HQ-16C expected.[ix]

2016:The HQ-16B variant is publicly revealed and reported by IHS Jane’s, featuring extended range and improved accuracy. Work begins on the HQ-16C.[x]

2011:The HQ-16 enters service in the Chinese military.[xi]

2005: China begins development of the HQ-16 system in collaboration with Almaz-Antey.[xii]

Circa 2000: China imports several Buk-M1-2 batteries from Russia.

1997:Russia completes development of the Buk-M1-2, which is redesignated as the SA-17 Grizzly.[xiii]

1992:Almaz begins development of the redesigned Buk-M1-2.

1986: The Buk-1 is exported for the first time, to Syria.[xiv]

1983:Theimproved Buk-M1 enters service in the Soviet army, which can engage air-launched cruise missiles and features improved resistance to electronic countermeasures and anti-radiation missiles.

1980:The Buk-1 system enters service in the Soviet army.

1972:Almaz begins development of the Buk system.[xv]
