Quick Facts

Variants

Tan-SAM-1B

Tan-SAM-1C

Role and Mobility Short-Range Air Defense; Road-Mobile
Interceptors and Range

Tan-SAM 1/Tan-SAM-1B

Range: 0.5-10 km

Speed: Mach 2.4

Tan-SAM-1C

Range: 0.5-14 km

Speed: Mach 2.4+

Sensors

3D Pulse Doppler, Phased Array Radar

Range: 30 km

Targets Low-Altitude Aircraft
Status/Exports Operational; None
Designer/Producer Toshiba Heavy Industries

Overview

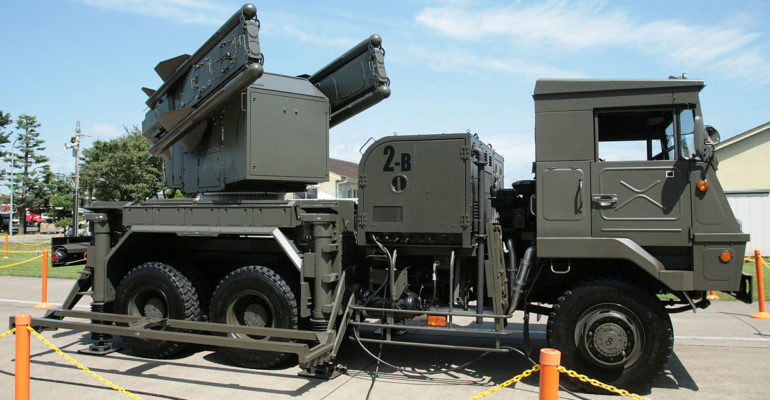

The Type 81 missile system, also known as the Tan-SAM, is a short-range, self-propelled, surface-to-air missile developed by the Japanese military. It was developed to fill the gap between the portable but manned Stinger missile and the fixed position Hawk missiles.[i] The system operates two launch vehicles and one fire control vehicle with a roof mounted radar.[ii] The radar can be used in three different modes: an omni-directional search, a sector search/course tracking mode which allows the system to track up to 6 targets within the same 110-degree field, and a fire tracking mode which can track 2 targets with greater accuracy.[iii] The missiles launched by the Type 81 have undergone two upgrades since it was developed.

Tan-SAM-1: The original missile with an infrared seeker.

Tan-SAM-1B: A version of the Tan-SAM-1 with an improved infrared seeker.[iv]

Tan-SAM-1C: Uses Tan-SAM Kai upgrade of improved rocket motor, allowing for increased range; operates with phased array active radar seeker, allowing for mid-course updates from the fire control vehicle[v]


Strategic Implications

The greater mobility of the Type 81 provides the capability for the Japanese armed forces to operate it within a greater range of area, while also maintaining the capability of intercepting multiple targets. The variable radar modes and the kai upgrade also allow the Type 81 to track with greater accuracy, increasing the rate of success for the system.


Timeline

 2000: first two fire units upgraded with kai upgrade

 1995: upgraded system designated the Tan-SAM-1C

 1989: development on kai upgrade begins

 1987: Tan-SAM-1B developed with minor changes to original missile

 1981: entered service in the Japanese armed forces

 1978: first test firings conducted

1966: development begins on Tan-SAM-1
