European Multifunction Phased Array Radar (EMPAR)

- , June 19, 2018

Quick Facts

Role and Mobility Threat Detection and Tracking; Ship-Mobile
Frequency C-Band
Range 150 km
Air Defense Interceptor Systems Principal Anti-Air Missile System (PAAMS) and Surface-to-Air Anti-Missile System (SAAM/IT)
Targets Supersonic Aircraft, Supersonic Anti-Ship Missiles, and Cruise Missiles
Status/Exports Operational; Italy, France, Algeria
Producer Selex ES

Overview

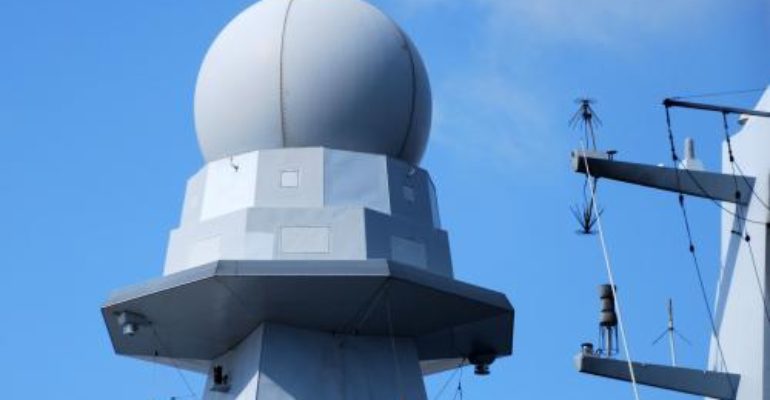

The European Multifunction Phased Array Radar (EMPAR) is a rotating passive electronically scanning array (PESA) system that operates in the C-band. The radar provides information regarding the altitude, bearing, and distance of airborne objects within a 150 km radius.[i] With 60 rotations per minute, the radar offers a continuous 360-degree view.[ii] It has simultaneous tracking of up to 300 different targets and, in cooperation with the Principal Anti-Air Missile System (PAAMS) or the Surface-to-Air Anti-Missile System, can engage up to 12 targets at once.[iii] EMPAR can also be integrated with the Principal Anti Air Missile System (PAAMS), providing guidance to Aster 15 and Aster 30 missiles which are used for medium- and long-range air defense.[iv]


Strategic Implications

The EMPAR is strategically desirable because of its ability to combine various surveillance and tracking functions into one unit. The EMPAR can conduct three-dimensional air search, as well as perform missile tracking and interceptor guidance missions. Furthermore, its ability to engage in rapid 360-degree surveillance makes it highly valuable for tracking speedy incoming airborne threats.


Timeline

October 2004: AMS announces that the EMPAR radar has reached a milestone by being integrated with an experimental Italian Navy ship called Carabiniere[v]

1995: Carabiniere enters service for EMPAR trials

December 1993: Extended trials completed, preparation for trials on frigate RIM Carabiniere[vi]

August 1993: EMPAR passes initial field tests[vii]

July 1986: NATO consortium formed for EMPAR development[viii]


Recent News


    References

    [i] https://www.revolvy.com/main/index.php?s=EMPAR

    [ii] http://www.deagel.com/news/EMPAR-Multifunction-Radar-Development-Progresses-Well_n000000253.aspx

    [iii] http://www.eurosam.com/products/eurosams-building-block/empar/

    [iv] http://www.deagel.com/news/EMPAR-Multifunction-Radar-Development-Progresses-Well_n000000253.aspx

    [v] Ibid.

    [vi] https://www.forecastinternational.com/archive/disp_old_pdf.cfm?ARC_ID=1728

    [vii] Ibid.

    [viii] Ibid.
