Quick Facts

Role and Mobility Long-Range Air Surveillance; Ground-Based, Road-mobile
Frequency L-Band
Range 470 km
Air Defense Interceptor Systems N/A
Targets Theater Ballistic Missiles, Cruise Missiles
Status and Exports Operational; Exported to Pakistan, Estonia, Australia, Brazil, Denmark
Producer Lockheed Martin

Overview

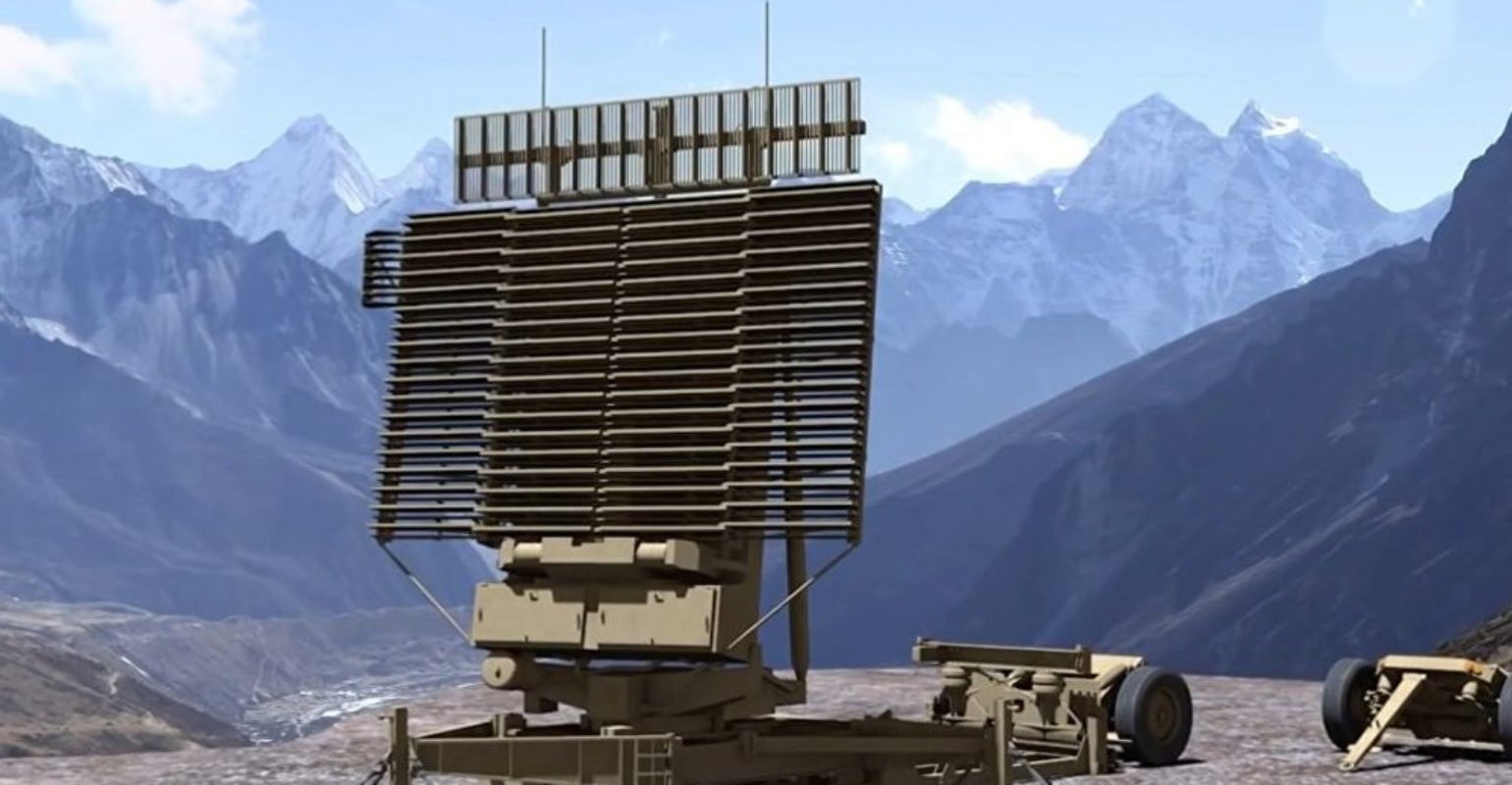

The AN/TPS-77 is the mobile version of the AN/FPS-117 radar. It’s a three-dimensional, tactical transportable, long-range air surveillance radar with the same range as the AN/FPS-117 of 470 km. The two systems share an 80 percent commonality rate.[i] However, unlike the AN/FPS-117, the AN/TPS-77 can be easily transported and deployed to operate all over the globe. AN/TPS-77 is transportable on the ground by train and truck and in the air by helicopter and cargo plane.[ii] Operating in the L-Band frequency, the AN/TPS-77 radar asserts superior long-range detection capabilities and allows for accurate position determination with every “hit” on a target.


Strategic Implications

The AN/TPS-77 offers many of the same strategic advantages as the AN/TPS-117. It can rapidly respond to jamming attempts, by randomly hopping among 18 different channels, and can detect anti-radiation missiles. It also possesses the same type of pencil beam architecture that allows for better detection especially in severe weather and clutter.[iii] Lockheed Martin believes that the AN/TPS-77 provides the best of the AN/FPS-117’s performance, reliability, and low cost of ownership in a package that is tactically transportable, making it an even more strategically valuable asset.[iv]


Recent News


    Timeline

    August 2013: Iraq requests the AN/TPS-77 radars.[v]

    October 2012: NATO tests Italian AN/TPS-77 for BMD System.[vi]

    April 2008: Pakistan receives the AN/TPS-77 radar system.

    2004: Lockheed Martin came out with the AN/TPS-77 radar as a mobile variant of the AN/FPS-117.


    References

    [i] http://www.radartutorial.eu/19.kartei/02.surv/karte025.en.html

    [ii] https://www.lockheedmartin.com/content/dam/lockheed/data/ms2/documents/TPS-77-Fact-Sheet.pdf

    [iii] http://www.mobileradar.org/Documents/TPS_77.pdf

    [iv] Ibid.

    [v] https://www.defenseindustrydaily.com/iraq-orders-a-long-range-radar-06880/

    [vi] https://www.army-technology.com/news/newsnato-tests-italian-antps-77-radar-bmd-system/
